Disposable Trocar System

The special synthetic material is x-ray translucent, lightweight and non-conductive.

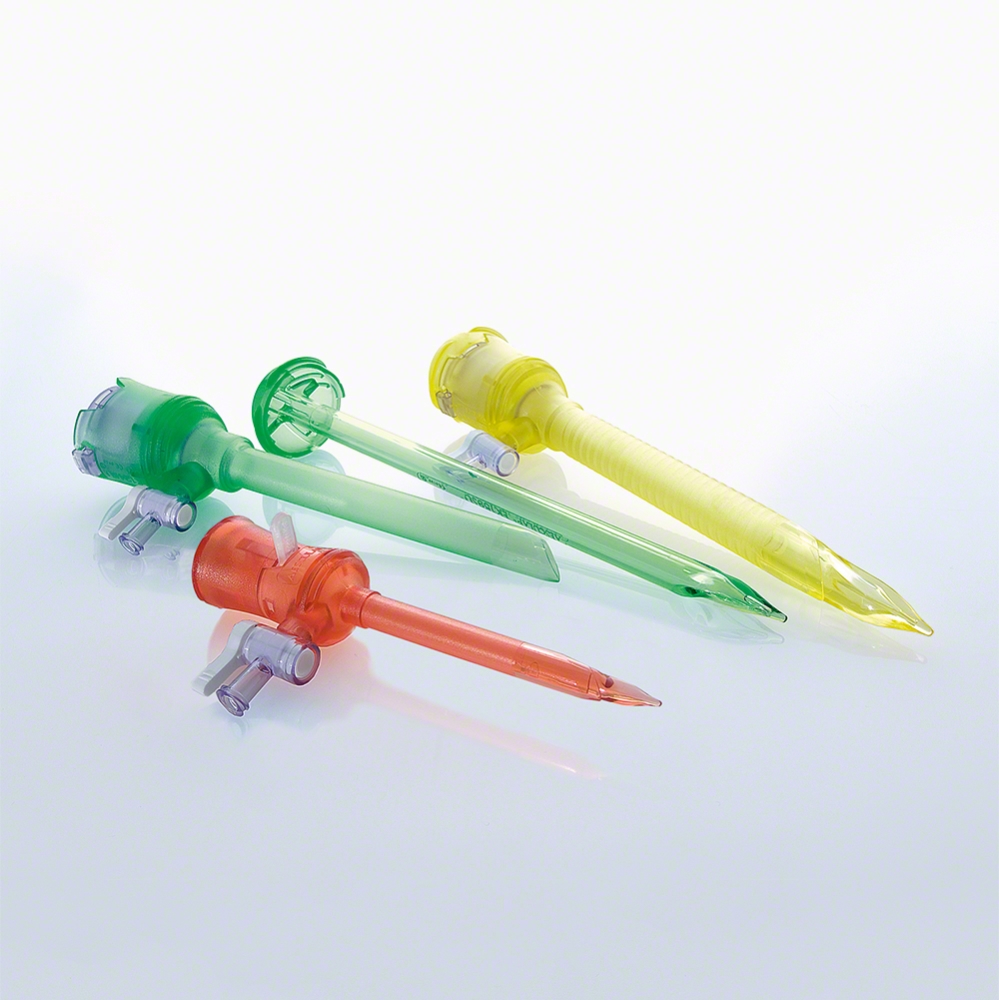

Complete trocars

• Available in all standard sizes.
• All three sizes (5 / 11 / 12 mm) with stopcock.
• Two integrated tear-resistant sealing systems to preserve the pneuroperitoneum and counteract CO2 leaks.
• Problem-free suture application or removal of resected material.
• Reduced friction for instrument protection.
• Single-handed instrument change.
• 5mm trocars are also available in 55 mm length.
• Trocar with blunt obturator for mini-laparotomy (Hasson trocar) - with stabilising cone

Universal seal

• No adaptors or reducing sleeves required - suitable for all 2-12 mm diameter instruments.
• Floating head for precise alignment of the cap with the trocar lumen according to the instrument diameter used.
• Bayonet connector for simple adaptation.
• The same sealing can be used for 11 mm and 12 mm diameter trocars.
• Stopcock integrated.
• We recommend that this seal be used with instruments and electrodes.

Premium seal

• The same seal can be used for 11 mm and 12 mm diameter trocars.
• 5 mm adaptor for spontaneous conversion from endoscopic access to working trocar.
• Bayonet connector for simple adaptation.
• Stopcock integrated.
• We recommend that this seal be used with the endoscope.

Insufflation needle / Veress cannula

• Single use - always sharp, no cleaning problems.
• Available in two lengths: 120 mm / 150 mm
• Coloured safety ring provides visual check when penetrating the abdominal wall.
• Audible click on penetration of the abdominal wall as an additional safety feature.
