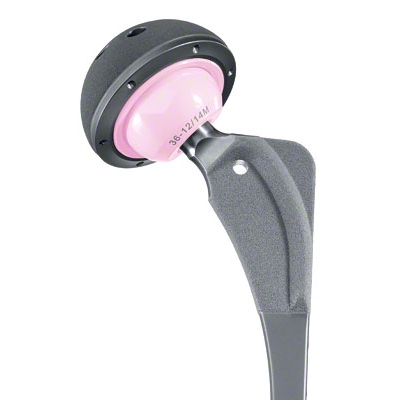

Plasmacup® SC Acetabular Cup
High primary stability and a low friction bearing surface
Plasmacup® acetabular cup system features and combines several important elements for cementless orthopaedic implants: The microporous Plasmapore® titanium surface with high primary and secondary stability, the use of the Biolox® ceramic-ceramic articulation components with minimum wear and the application of the OrthoPilot® navigation technology for exact implant positioning.
Plasmapore® surface
Plasmacup® features the proximal rough Plasmapore® titanium micro-porous coating for cementless implantation. Also implants with an additional 20 µm calcium phosphate layer are available. This thin layer has an osteoconductive effect and accelerates contact between the bone and the prosthesis stem.
Biolox® ceramics
Plasmacup® can be implanted with Biolox® delta ceramics, the latest generation of bioceramics for hip arthroplasty. The Plasmacup® delta series is dedicated to 36 mm cermic heads and inserts to increase hip stabilty and the range of hip motion. The ceramic on ceramic bearing surfaces guarantee minimal wear. The favourable wettability of the surfaces allow a good joint lubrication. The ceramic material is extremely scratch resistant and at the same time totally biocompatible.
Modular inserts
The self-locking conical anchoring stabilises the modular Plasmacup® inserts preventing any micromovements. The area in which the resultant forces are concentrated is provided with the maximum material thickness. Optional anchoring screws can be orientated freely during insertion. The modular range of implants with different fixation options offers the surgeon a choice: ceramic or polyethylene inserts. Implant components can therefore be chosen to suit the individual requirements of the patient.
OrthoPilot® navigation
Plasmacup® can be implanted with the OrthoPilot® navigation technology. In navigated Plasmacup® surgeries the system measures the inclination and anteversion angles relative to the anterior pelvic plane. During the acetabular reaming the joint center, the reaming depth and the orientation of the reamer are measured and displayed. Plasmacup® navigation with OrthoPilot® is suitable for different patient positions and surgical approaches.
