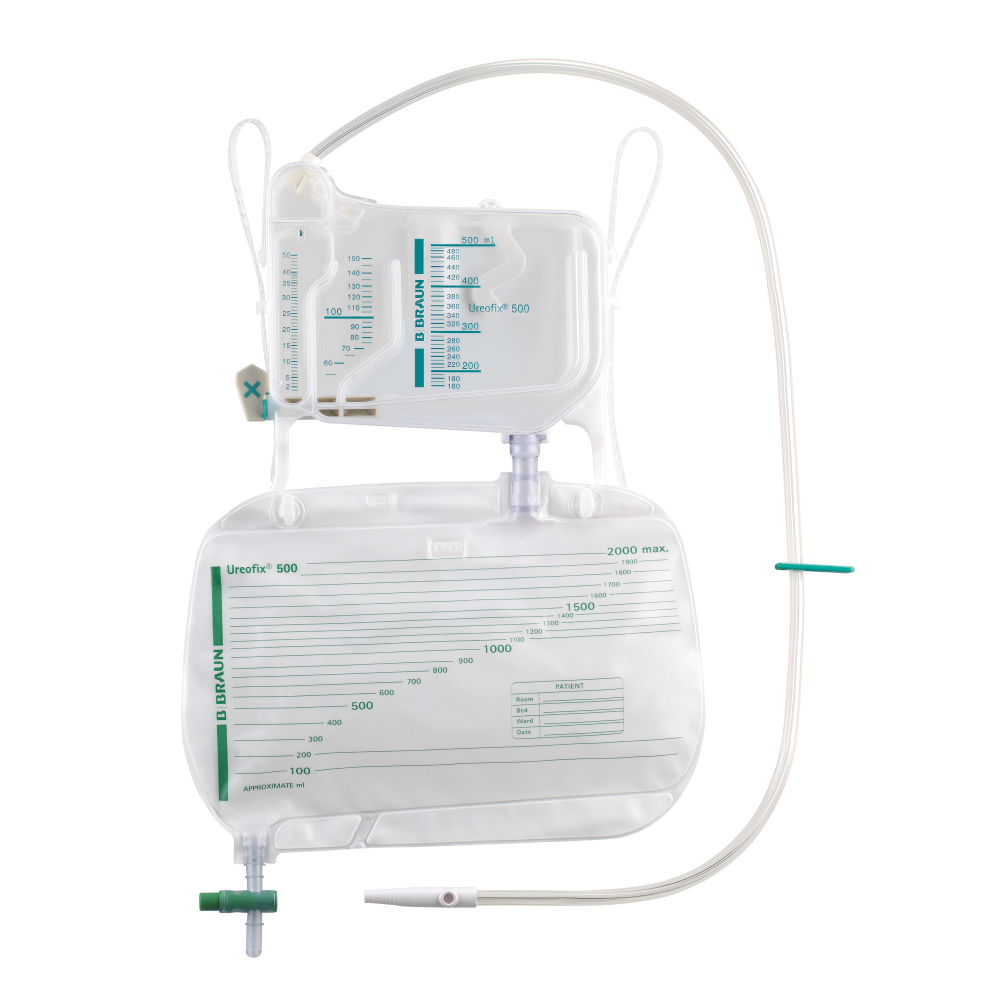

Ureofix® 500 Classic with bottom outlet bag
Urine measurement system for diuresis
Ureofix® 500 Classic is a closed sterile urine measurement system dedicated to diuresis and evaluation of urine quality, which allows an accurate urine volume measurement. The set includes a bottom outlet bag pre-mounted on a rigid 3-compartment container.
Features
- Rigid 3-compartment container with a capacity of 500 ml
- Dry Pasteur drip chamber with anti-reflux valve to prevent retrograde migration of bacteria and venting air inlet filters for pressure balance
- Vented measuring chamber divided in 3 compartments with 50 ml, 150 ml and up to 500 ml fine measuring for accurate urine measurement
- Emptying of the container with clearly identified flow direction on the tap
- 2 L bottom outlet bag pre-mounted
- Simple twist bayonet connector for safe connection without leakage
- Anti-reflux valve and air inlet to prevent urine back flow
- Bag design with approximate graduation scale and clear patient identification space
- Free flow, no touch, bottom cross-outlet for quick and clean emptying
- Cross-outlet can be stored horizontally to decrease the risk of infection
- Transparent tubing with slide clamp, available in 120 cm, 170 cm or 200 cm length
- Needle-free sampling port on the tubing stage connector to match international recommendations for a better safety of the user
- Large choice of fixation solutions on all types of beds and supports:
- 2 punched hole straps pre-mounted on the container for permanent fixation on the bed frame
- Integrated removable hook pre-mounted on the back side of the container for quick fixation
- Pin and tip jack system for permanent fixation and quick repositioning
- Removable fixation plate
Indication
Ureofix® is intended for closed urinary drainage and concomitant monitoring of the urinary output of critically ill patients.
